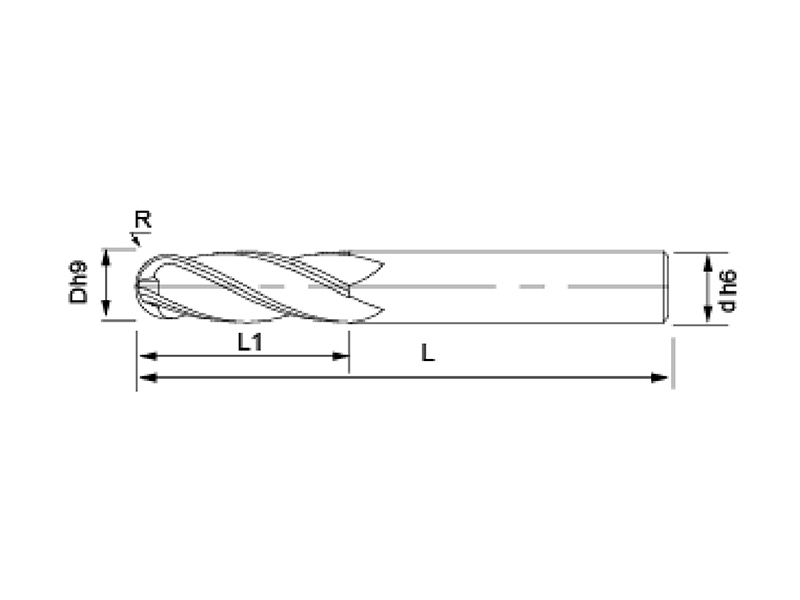

刃径(D h9) | 球头半径 | 刃长(L1) | 柄径(d h6) | 全长(L) | 刃数(Z) | 避空直径 | 有效长 |
3 | 1.5 | 6 | 4 | 50 | 4F | / | / |
4 | 2 | 8 | 4 | 50 | 4F | / | / |
5 | 2.5 | 10 | 5 | 50 | 4F | / | / |
5 | 2.5 | 10 | 6 | 50 | 4F | / | / |
6 | 3 | 12 | 6 | 50 | 4F | / | / |
8 | 4 | 16 | 8 | 60 | 4F | / | / |
10 | 5 | 20 | 10 | 75 | 4F | / | / |
12 | 6 | 24 | 12 | 75 | 4F | / | / |
14 | 7 | 28 | 14 | 100 | 4F | / | / |
16 | 8 | 32 | 16 | 100 | 4F | / | / |
18 | 9 | 36 | 18 | 100 | 4F | / | / |
20 | 10 | 40 | 20 | 100 | 4F | / | / |
4 | 2 | 8 | 4 | 75 | 4F | / | / |
6 | 3 | 12 | 6 | 75 | 4F | / | / |
8 | 4 | 16 | 8 | 75 | 4F | / | / |
4 | 2 | 8 | 4 | 100 | 4F | / | / |
6 | 3 | 12 | 6 | 100 | 4F | / | / |
8 | 4 | 16 | 8 | 100 | 4F | / | / |
10 | 5 | 20 | 10 | 100 | 4F | / | / |
12 | 6 | 24 | 12 | 100 | 4F | / | / |
6 | 3 | 12 | 6 | 150 | 4F | 5.8 | 30 |
8 | 4 | 16 | 8 | 150 | 4F | 7.8 | 40 |
10 | 5 | 20 | 10 | 150 | 4F | 9.8 | 50 |
12 | 6 | 24 | 12 | 150 | 4F | 11.8 | 60 |
14 | 7 | 28 | 14 | 150 | 4F | 13.8 | 70 |
16 | 8 | 32 | 16 | 150 | 4F | 15.8 | 80 |
18 | 9 | 36 | 18 | 150 | 4F | 17.8 | 90 |
20 | 10 | 40 | 20 | 150 | 4F | 19.8 | 100 |
